OptiNID® OPN-350SS Optical Demarcation Slack Storage Closure,
OptiNID OPN-350SS Slack Storage Box, 1 x SC/APC Adapter, Splice Chip, Ground Stud. Price per each.
Price:RFQ
EA
| Additional Information: |
|
Features & Specifications
• Weather-resistant thermoplastic alloy
• Self-latching, hinged cover design allows easy access without loose parts
• Routing rings positioned for safe slack storage
• Capacity for up to two adapters
• Ground stud provided in the OPN-350SS
• Dielectric Strength : Minimum 2500 Vrms for 1 minute
• High Temperature Storage/Mold Stress : 14 days at 159°F (70.55°C)
• Temperature Cycling with Humidity : 150 day cycling from 40-140°F (4.44-60°C) with 95% RH
• Impact Test : -40°F (-40°C), 5 ft/lbs on all external surfaces
• Drop Test : -40°F (-40°C), 5 ft onto concrete surface four times
• Rain : 24 hours at 10 psi
• UV Resistance (Days Exposed) : 60 per ASTM-G26-84
• Salt Fog (Days Exposed) : 60 per ASTM-BLL7-90
• Flammability : UL94-5V
• Chemical Resistance 30 Days at 100°F and 95% RH : Resists chipping and/or cracking when subject to house paint, wasp spray, sulfuric acid, kerosene and sodium hydroxide
• Material : UL® listed flame retardant thermoplastic alloy
• Dimensions (H x W x D) in. (cm) : 6.3 x 7.8 x 2.0 (15.7 x 19.7 x 5.0)
• Cable Entrance in. (cm) diameter – Input : 1 x 3/4” NPT (1.130”), 2 x 1/2” NPT (0.875”)
• Covers : Standard, molded-in snap finger and “F” termination
Related Products
Part#: 900-040045

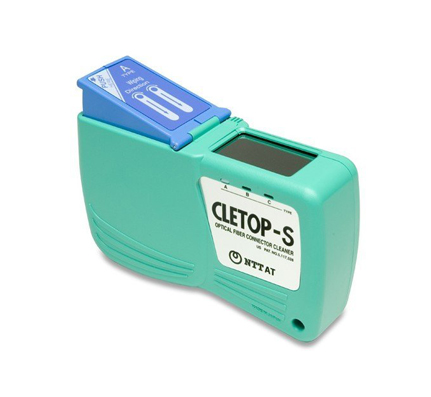

Blue replacement tape for Cleptop Original Series cassett cleaners
