Features & Specifications

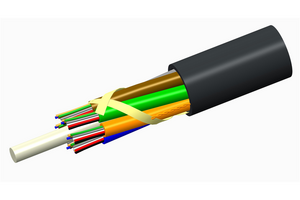

  • Access Ready Construction (ARC) with completely gel-free construction with easy-to-access and identify optical fiber circuits.
  • SpiderWeb Ribbon® (SWR®) optical fiber technology that is easily ribbonized for mass fusion splicing. SWR® is compacted and routed like individual fibers. Ideal for organizing slack loops
    in splice enclosures as there is no preferential bending of ribbon.
  • Significantly higher fiber density compared to traditional ribbon cables. Offers ability to expand capacity of existing pathways and allows use of smaller, lower cost duct systems.
  • Smaller cable diameters and cable weights means longer reel lengths that allow for lower scrap rates, easier handling of reels at the site and reduced transportation costs.
  • Completely dry water-blocking technology that reduces time required to prep cable-end and mid-span access resulting in labor savings.
  • Compact ribbon bundles that reduces enclosure/splice tray size requirements allowing for smaller telecommunications space allocation.
  • Supports all the standard cable deployment options typically found in the OSP environment including, duct, direct buried and aerial.
  • Fully qualified to Telcordia GR-20. Provides assurance that the cable will support optical fiber network transport functions now and into the future.

Related Products

Part#: 900-020219

NOYES Optical Fiber Identifiers are rugged, hand-held, and easy-to-use fiber optic test instruments designed to detect optical signals transmitted through a single-mode fiber without disrupting traffic. During installation, maintenance, rerouting or restoration, it is often necessary to isolate a specific fiber. By simply clamping an Optical Fiber Identifier onto a gently-bent fiber, the unit will indicate if there is “No Signal”, “Tone”, or “Traffic” and identify signal direction. The OFI-200 model is equipped with a unique two-position head design that can be configured to work with 250 µm, 900 µm, ribbon or jacketed fiber in seconds, without tools or adjustments. When testing coated fibers, the slim design of the OFI-200 allows easier access on a splice tray where the amount of work space is limited. The clamping trigger is ergonomically designed to fit the natural motion of the operator’s hand. A high-impact molded plastic case makes the OFI-200 suitable for use outside plant or in the central office.

Price: RFQ
Part#: 900-040065

Specifically designed to lift and trap common contaminants found in fiber optic installations, AFL FiberWipes provide superior cleaning results from material that is stronger and more absorbent, yet softer than traditional cellulose wipes. Packaged in a clean room, the fabric is fully optical quality grade. FiberWipes are available in rugged mini-tubs (90 wipes).

Price: RFQ
Part#: 900-040045

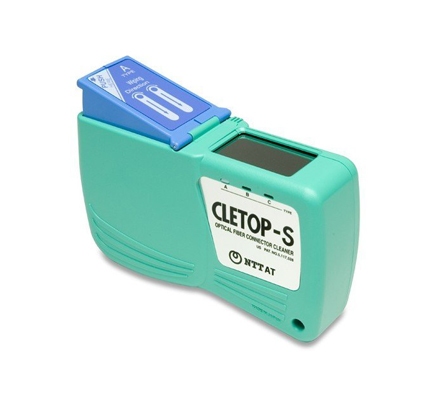

Blue replacement tape for Cleptop Original Series cassett cleaners

Price: RFQ
Part#: 500-120008

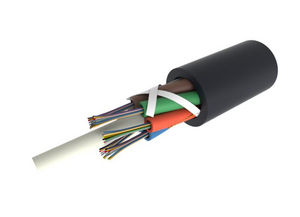

ADSS Fiber Cable, 96 ct., Singlemode, Single Jacket, Loose Tube, SMF28e, Dry/Dry, 500' Max Span NESC Medium Load, Price Per Ft.

Price: RFQ
