GMP Hurricane Cable Blowing Machine

June 15, 2021

Home GMP Hurricane Cable Blowing Machine

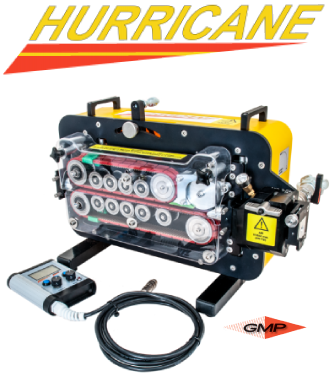

Meet the Hurricane Cable Blower

As MicroTechnologies are becoming increasingly popular, GMP has developed the new Hurricane Cable Blowing Machine to maximize protection and efficiency when installing MicroCables.

This new blower features a compliant double drive concept. The Dual Digital servo motor drive system helps users with precise control of torque and speed – allowing for single-person operation.

The GMP Hurricane can install the industry-leading range of cables with a pushing force of 90 lbs. It can blow 2.5-14 mm cable and 5-25 mm duct. It also has automatic cable centralizing with forwarding and reserve options that allow for ease of operation.

It features advanced data logging. It not only measures speed and distance but can also measure force, GPS location, and environmental conditions. Both variable torque and speed are remote-controlled. Plus, cable speed and length are monitored digitally.

Low maintenance and noise levels make this fiber optic cable blower make it revolutionary. Plus, the GMP Hurricane comes with a tool kit for on-the-job maintenance. It is lightweight and has a compact size that makes it easy to haul to your next project in its included travel case.

Features:

Synchronous high grip profiled compliant drive belts
Vertical design with ergonomic controls for ease of operation
Auto-stop facility when air stone fitted
Integral air valve and pressure gauge
Easy cable threading
Polycarbonate safety guarding

Specifications:

DIMENSIONS & WEIGHT:

Weight: 53 lbs. (24kg)
Dimensions (h x l x w): 13 7/8″ x 21 7/8″ x 12″

POWER REQUIREMENTS:

90-264VAC 50/60 Hz

OPERATING CAPACITIES:
Pushing Force: 0-95 lbs. (0-422N)
Pushing Speed: 0-279 ft/min (85m/min)
Cable Size: .10-.55″ (2.5-14mm) O.D.
Sub – Duct Size: .20-.98″ SDR (5-25mm) O.D

PNEUMATIC SYSTEM:
Operating Pressure: 220 psi (15 bar)S
Flow: The air supply should be filtered, cooled, and dry
